CREPIM – Fire Resistance

For years, CREPIM has been developing intumescent systems, which are applicable in reaction and in fire resistance.

In this context, CREPIM has been equipped for 10 years with fire resistance tests, completed in 2018 by a new laboratory, operating under accreditation and located in Marly, in the Valenciennes region.

.

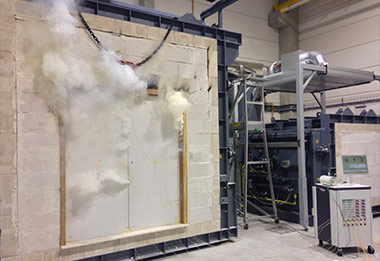

CREPIM : four de résistance au feu

Our test facilities include three fire resistance furnaces :

  • 3 x 3 m dedicated to doors and walls
  • 1,5 x 1,5 m dedicated to walls and ceiling, including the hydrocarbon curve protocol
  • 1 x 1 m dedicated to walls, ceiling and technical cabinets

This installation can be used for the development or for validation of systems - under the accreditation scope - and it is implementable to meet the needs of different markets, with a focus on :

  • The railway sector with EN 45545-3 and the fire resistance tests (EN 1363-1) for partitions and walls (NF EN 1364-1), ceilings (NF EN 1364-2) and door (NF EN 1634) -1)
  • Maritime sector with FTP code 2010 part 3 and part 4 for partitions and walls, ceilings and doors

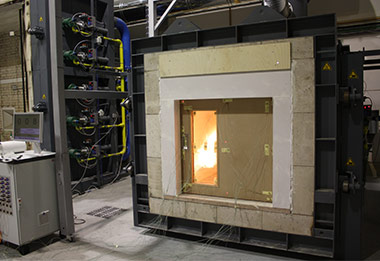

CREPIM : four de résistance au feu

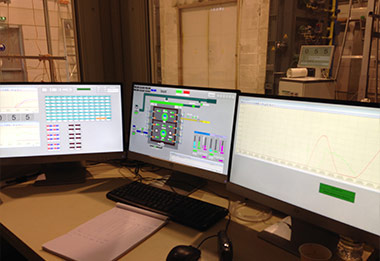

CREPIM : Analyse résistance au feu

We can also perform all types of non-accredited tests related to standards for partitions and walls (EN 1364-1), ceilings (EN 1364-2) and doors (EN 1634-1), as well as other standard such as:

  • EN 1363-1: Fire Resistance, general requirements
  • EN 1364-1: Non-load bearing walls
  • EN 1364-2: False ceilings
  • EN 1364-3-4: Curtain walling
  • EN 1365-2: Floors and roofs
  • EN 1365-5: Balconies and walkways
  • EN 1365-6: Stairs
  • NFPA 252: Door Assemblies
  • NFPA 415: 2013 section 6.4: Airport Terminal Buildings, Fueling Ramp Drainage, and Loading
  • UL 9: Window Assemblies, Fire resistance
  • UL 10B: Fire tests to door assemblies
  • Non-exhaustive list, feel free to consult us for any inputs...


Our equipment is constantly evolving and aims to adapt to the different needs of our customers.

Working with CREPIM guarantees the professionalism associated with an accreditation practice. This is combined with our knowledge and historical know-how on materials in order to bring more value to our clients for a better understanding of the results.
